Technical features

The main material is high-strength aluminum alloy.

The height of the whole stretcher can be adjusted in more than 4 positions, which is convenient for CPR operation.

The height of the front part and back part can be adjusted in 6 positions.

The stretcher’s leg folding mechanism and height adjustment is controlled through the front and rear pull rod operation.

The guardrail uses polymer plastics; the adjustable structure makes it easy for patients to get up and down, and the stretcher adopts shoulder belts.

It is equipped with a three-stage IV stand, with a maximum length of 80cm.

The mattress is made of wear-resistant mesh cloth in a concave shape, with a thickness of 10cm.

The mattress features disposable welding and is flame retardant and waterproof.

The universal wheels on the front end adopt an elastic latch to lock; they can be locked to go straight or remain universal as needed.

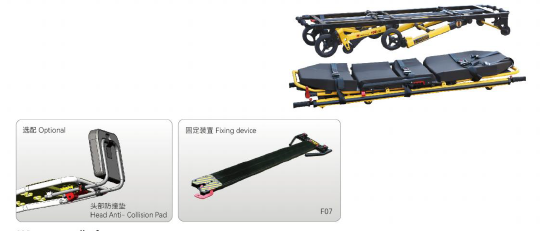

It is recommended to use the F07 one-piece fixed device, which uses 3-point fixation for stability and security.

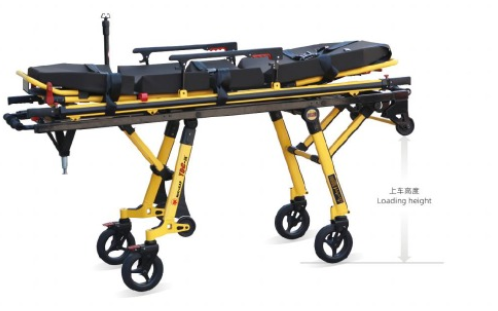

YDC-3K Loading height: 62cm.

Wheel size: Ø150mm / Ø200mm.
