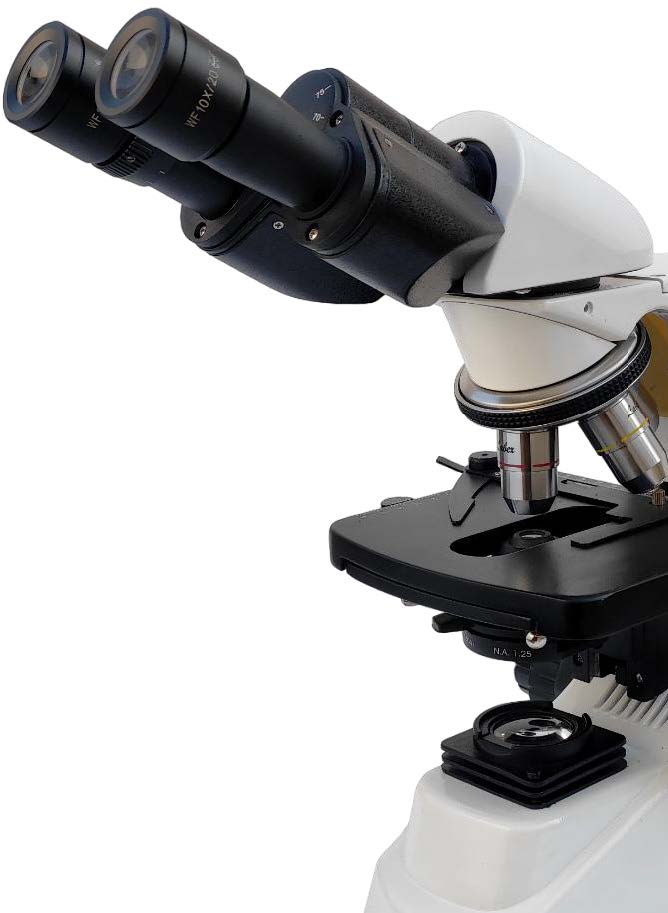

The Labex C3 Biological Microscope is a next-generation research microscope engineered to deliver exceptional optical clarity, durability, and ease of use. Built on the proven legacy of the KX i2000 series, the C3 model combines precision optics, ergonomic design, and reliable performance—making it ideal for laboratories, medical institutions, and educational environments.

Key Features

• Superior Optical System: Infinity color-corrected optical system with IP Series Plan Achromatic objectives (4x, 10x, 40x, 100x) for outstanding flat images and clarity.
• Ergonomic Binocular Viewing: 30° inclined, 360° rotatable observation tube with 50–75 mm interpupillary adjustment and dioptric control.
• Wide-Field Eyepieces: WF10x eyepieces (FN 20) with anti-reflective and anti-fungal coating allow comfortable extended viewing—even with eyeglasses.
• Precision Mechanical Stage: Double-layer graduated stage (150 × 135 mm) with smooth coaxial X-Y control and double specimen holder.
• Coaxial Coarse & Fine Focusing: Smooth ball drive system with brass gears, torque adjustment, and fine control for delicate focusing.
• High-Performance Illumination: Built-in 3W Super Bright LED light source with intensity control and optional rechargeable battery backup for field use.
• Abbe Condenser: NA 1.25 with built-in aperture diaphragm and aspheric lens for uniform illumination and contrast control.
• Rugged Construction: Die-cast, anti-rust metal body with ergonomic hand rest, scratch-resistant mechanical stage, and anti-fungal treatment on all optical components.

Specifications

• Optical System: Infinity color-corrected
• Observation Tube: Binocular, 30° inclined, 360° rotatable
• Interpupillary Distance: 50–75 mm with dioptric adjustment
• Eyepieces: WF10x / FOV 20 mm (anti-fungal, anti-reflective)
• Objectives: Infinity Plan Achromatic (4x/0.10, 10x/0.25, 40x/0.65 spring, 100x/1.25 oil spring)
• Nosepiece: Quadruple inward-facing revolving type with soft rubber grip
• Stage: 150 × 135 mm double-layer, 75 × 55 mm X–Y travel range
• Focusing System: Coaxial coarse/fine focus with torque adjustment and metal gear drive
• Condenser: Abbe NA 1.25 with built-in iris diaphragm and daylight filter
• Illumination: 3W LED with intensity control (optional battery backup)
• Power Supply: 100–240V AC, 50–60Hz, CE compliant
• Body: Single-mould die-cast anti-rust metal with ergonomic base
• Dimensions: 290 × 360 mm (approx.)
• Accessories Included: Operation manual, cleaning cloth, and dust cover
• Optional Upgrades: Trinocular head, phase contrast, polarizing and dark field attachments, CCD/CMOS camera modules, LCD screen
